Chromecast with Google TV (4K) - Persistent Secure Boot Bypass

Making hardware FOSS friendly - sabrina-unlock

An exploit chain intended to allow one to run a custom OS/unsigned code on the Chromecast with Google TV (CCwGTV) 4K.

This uses a bootROM bug in the SoC by security researcher Frederic Basse (frederic).

Frederic also did a great amount of work to temporarily boot a custom OS from USB here.

Security researchers Jan Altensen (Stricted) and Nolen Johnson (npjohnson) took the vulnerability and provided tools and customized a u-boot image to take advantage of the provided secure-execution environment to fully bootloader unlock the device.

Standard Disclaimer

You are solely responsible for any potential damage(s) caused to your device by this exploit.

Exploit Resources

Whitepaper

Background

When the CCwGTV launched, a lot of us in the Android community were excited to see a proper successor to the Asus Nexus Player. A new Android TV to develop on!

Or not. When the CCwGTV launched, no kernel/modules/u-boot source was provided, and the bootloader was intentionally made non-unlockable.

Inquiring with Google ultimately led to the legally required GPL license releases of kernel/modules/u-boot source code.

In late 2020, Frederic Bassé found a a bootROM bug that enabled temporarily booting custom BL2/BL33 images a variety of Amlogic devices series chipsets.

He used it to temporarily boot Ubuntu on sabrina as a proof-of-concept, however, upon reboot, the device would boot back into its stock OS, and any attempts to modify the OS from the live custom environment would result in Android Verified Boot locking you out of the system.

Earlier this month, Jan and I found Frederic’s work and began to theorize methods to permanently unlock the device using the access provided by the existing exploit.

After procuring several vulnerable devices from eBay by looking at the MFP date printed on the barcode located on the bottom of the device’s box, we set to work.

Decrypting and unpacking the Bootloader

The first hurdle to overcome is that all the CCwGTV’s bootloader images are encrypted with an AES key and IV. To statically analyze these, we’d need that key. The easiest way to do this is to dump the memory on the device when it’s in the earliest possible execution stage. Conveniently, as mentioned above, we have easy access to burn-mode, which is one of the earliest/most privileged execution contexts.

First, we dumped the device’s memory while in burn-mode using the payload Frederic provides here. We then got in contact with Frederic, who gave us the pointer that the AES key used to encrypt the bootloader lies at 0xFFFE0020. By changing the BOOTROM_ADDR variable to the address we were given, we were able to dump the AES key in question by reading out the first 48 bytes of the dump using hexdump, of which the first 32 bytes were the key, and last 16 bytes were the IV.

From there, we used Frederic’s scripts here in combination with the AES key we dumped to extract/decrypt sabrina’s existing BL2/BL33 images.

We can verify this is the correct AES key/IV combo by running strings on the output u-boot image and parsing for valid strings we’d expect in u-boot, like the build string, and sure enough there it was U-Boot 2015.01-g77f62c30a0 (Jul 13 2020 - 08:25:23).

Building a PWN’d bootloader

Firstly, we need to patch the prebuilt BL2 image to disable secure boot, and anti-rollback (ARB) protection.

We can drop the decrypted and extracted BL2 into IDA Pro and trace the functions then edit the failure case to return 0 (success).

The BL2 patch to disable secure boot is detailed below:

--- <sabrina.bl2.factory.2020-07-13.img>
+++ <sabrina.bl2.noSB.img>
@@ -3,5 +3,5 @@
 fffabd70 81 c2 00 91     add        x1,x20,#0x30
 fffabd74 02 04 80 d2     mov        x2,#0x20
 fffabd78 8a 02 00 94     bl         secure_memcmp
-fffabd7c 60 03 00 35     cbnz       w0,auth_fail
+fffabd7c 00 00 80 52     mov        w0,#0x0
 fffabd80 80 72 40 39     ldrb       w0,[x20, #0x1c]

The BL2 patch to disable anti-rollback is detailed below:

--- <sabrina.bl2.noSB.img>
+++ <sabrina.bl2.noSB.noARB.img>
@@ -1,8 +1,8 @@
                      uint __cdecl IS_FEAT_ANTIROLLBACK_ENABLE(void)
      uint              w0:4           <RETURN>
                      IS_FEAT_ANTIROLLBACK_ENABLE
 fffa1744 00 06 80 d2     mov        x0,#0x30
 fffa1748 60 ec bf f2     movk       x0,#0xff63, LSL #16
 fffa174c 00 00 40 b9     ldr        w0,[x0]=>SEC_EFUSE_LIC0
-fffa1750 00 18 46 d3     ubfx       x0,x0,#0x6,#0x1
+fffa1750 00 00 80 d2     mov        x0,#0x0
 fffa1754 c0 03 5f d6     ret

Awesome, now we just need to craft a u-boot image that unlocks the device… which while you may think would be one of the hardest parts, u-boot runs in EL3, which is a highly trusted context, meaning we can arbitrarily read/write most things.

Google released the u-boot source-code for the latest CCwGTV build here, and it served as an invaluable reference to analyze how bootloader locking on these devices is handled.

Amlogic handles most of their persistent u-boot and general environment variables by storing them in a partition called env. Initially, we thought we’d have to modify the variable responsible for determining is_unlockable, but quickly it became apparent that simply writing directly to the lock variable was the most effective way to attain our goal.

To figure out what that should be, we can look at the following line of code:

sprintf(lock_d, "%d%d%d0%d%d%d0", info->version_major, info->version_minor, info->unlock_ability, info->lock_state, info->lock_critical_state, info->lock_bootloader);

Translating this, the values contained in this integer correspond to <version_major><version_minor><unlock_ability>0<lock_state><lock_critical_state><lock_bootloader>0, which handles rollback version values, lock state, and unlock ability.

This data is all fed into this struct:

typedef struct LockData {
	uint8_t version_major;
	uint8_t version_minor;
	uint8_t unlock_ability;
	/* Padding to eight bytes. */
	uint8_t reserved1;
	/* 0: unlock    1: lock*/
	uint8_t lock_state;
	/* 0: unlock    1: lock*/
	uint8_t lock_critical_state;
	/* 0: enable bootloader version rollback 1: prevent bootloader version rollback*/
	uint8_t lock_bootloader;
	uint8_t reserved2[1];
} LockData_t;

Given this, simply inserting the following code block into common/main.c within u-boot source before run_preboot_environment_command which sets all these variables would (in theory) unlock the device:

run_command("mmc dev 1; setenv lock 10100000; setenv bootdelay 3; save; reboot fastboot", 0);

Translating this mmc dev 1 just puts the eMMC module in a state that u-boot can write to it, setenv lock 10100000 directly changes lock status from 10001110, setenv bootdelay 3 allows users to interrupt u-boot by hand over UART, then save simply saves the environment. reboot fastboot isn’t necessary strictly, but it is the easiest way to have the user confirm if they’re unlocked.

We rolled our own u-boot with this integrated:

export CROSS_COMPILE=/home/$redacted/bin/toolchains/gcc-linaro-aarch64-none-elf/bin/aarch64-none-elf-
export CROSS_COMPILE_T32=/home/$redacted/bin/toolchains/gcc-linaro-arm-none-eabi/bin/arm-none-eabi-
make sm1_sabrina_v1_defconfig
make

Repacking, re-encrypting, and executing the PWN’d bootloader

We then used Frederic’s repack_bootloader.sh to repack our customized u-boot and his customized BL2 image that ignores BL33 (u-boot) signature and nulls out the anti-rollback check.

Unfortunately, as things often are, this was not as easy as it would seem. The new image didn’t boot at all.

Turns out, we needed to follow Frederic’s example, and first enable UART console and configure it to debug the issue further. The awesome people over at Exploiteers already did the leg work identifying RX/TX pads on the board, and the awesome PCBite tools from the people over at SensePeek made it easy to get UART logs up and printing.

Here's a photo of my setup.

For convenience’s sake, we also removed the 0 second boot-delay and flags that disable update mode, and removed a few other small restrictions to debug the issue.

The issue turned out to be that we were getting tossed into burn mode - which was quickly discovered to be easily bypassed by disabling the config that forces it!

With this in place, it was as simple as re-building u-boot, repacking the bootloader image, and then re-running the exploit to upload the custom bootloader.

UART logs then showed that our u-boot was not only executed, but env modified just as we intended, saved to the block device, and then the device (tried) to reboot to fastbootd mode, however, likely due to lingering effects of the exploit, it booted back to burn mode. Simple unplugging the device and re-plugging it in let it fire up, detect the persistent boot-reason variable, and kicked us to fastbootd mode.

We then ran fastboot getvar unlocked to grab the lock status and… success!

unlocked: yes
Finished. Total time: 0.001s

Now, because Android isn’t stupid, and at least tries to maintain user-data security, attempting to reboot will dump us into Android Recovery saying the “System is corrupt and can’t boot”, simply using the button on the device, and short pressing to highlight “Factory Data Reset”, then long pressing it to select, and confirming your selection, then rebooting will remedy the situation, and your device will boot into the stock OS, freshly unlocked.

This was an extremely fun process and goes to show that releasing your vulnerability research can lead to even cooler discoveries!

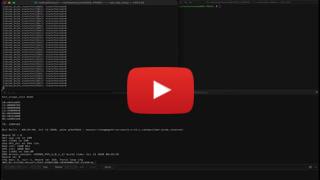

Demo

Disclosure Timeline

Note: This exploit chain doesn’t warrant disclosure, as it doesn’t leverage any new vulnerabillities, and simply utilizes existing vulnerabillities to get execute unintended functions.

Credits

  • Nolen Johnson (npjohnson): The writeup, helping debug/develop/theorize the unlock method
  • Jan Altensen (Stricted): The initial concept, u-boot side unlock implementation, debugging/developing the unlock method, and being a wealth of information when it comes to Amlogic devices
  • Frederic Basse (frederic): The initial exploit and the AES key tip

Special Thanks

  • Ryan Grachek (oscardagrach): Being an awesome mentor, teaching me a fair chunk of what I know about hardware security, and being a massive wealth of knowledge about most random things.
  • Chris Dibona: Being an awesome advocate of OSS software and helping ensure that we got all the source-code pertinent to the device.
  • Pierre-Hugues Husson (phh): For pointing me down the Amlogic road to begin with by letting me know Google had decided to make the ADT-3 bootloader unlockable.
  • XDA users @p0werpl & @JJ2017, who both helped experiment and find a combination of images that allowed us to skip the forced OTA in SUW.

Contribute to FOSS development on this device

Written on June 30, 2021
